Dishwasher door gaskets matched by cross-section, not by length.
Dishwasher door gasket replacement goes wrong when someone buys "the 72-inch one". Two gaskets of the same length can have a D profile and a bulb-and-fin profile, and only one of them seals your tub. We measure the cross-section, and we check spray arms by the hub bearing, before anyone names a price.
Tear at hinge side · check the door
DW-01 · Per gasket

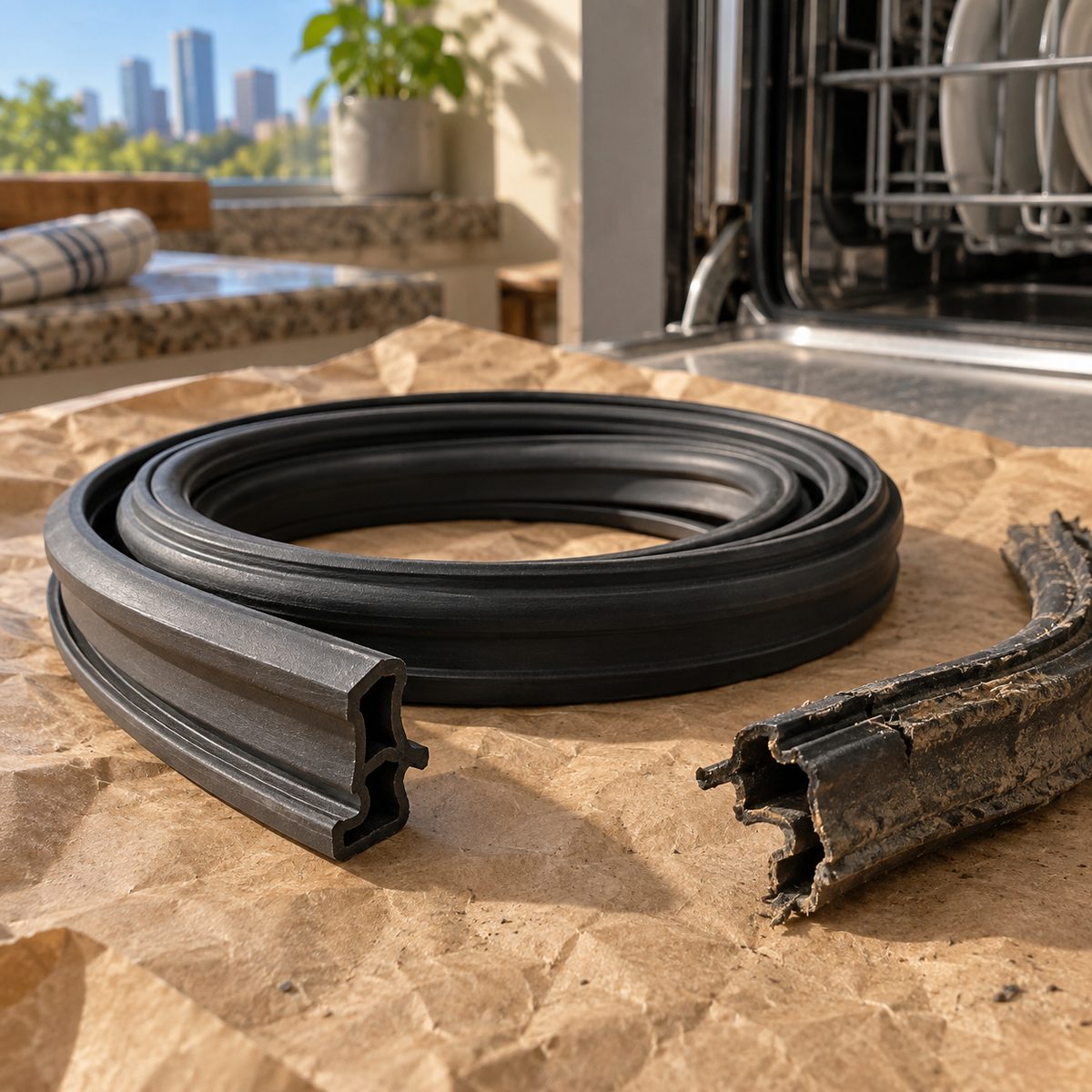

Dishwasher door gasket
The door gasket is an EPDM or silicone extrusion pressed into a channel around the tub opening. Some are a plain D-section, some are a hollow bulb with a fin that sits in the channel, and European tubs often use a molded corner piece at the bottom that is sold as part of the gasket. Length matters, but it is the last thing we check.
We take the cross-section with a caliper on the old gasket, or from the model number's parts list when you don't have it out yet. Height of the bulb, width of the fin, how deep the channel is. A gasket that is 1 mm too short in the bulb will look fine and drip on the floor every cycle.
One warning that saves a lot of money: if the gasket tore at the hinge side, the door is out of square. A new gasket will tear in the same place. Check the hinge springs and cables first; they are cheap and we stock them for common models.
| Matched by | Model number, then cross-section measured on the old gasket |
|---|---|
| Checked | Profile type, bulb height, fin width, overall length, corner pieces |
| Material | EPDM for most tubs; silicone where the OEM part is silicone |
| Also asked | Where the old one tore, so a sagging door is not missed |
| Price basis | Per gasket · $18–$46 |
$18–$46Indicative, confirmed on reply
DW-02 · Per arm

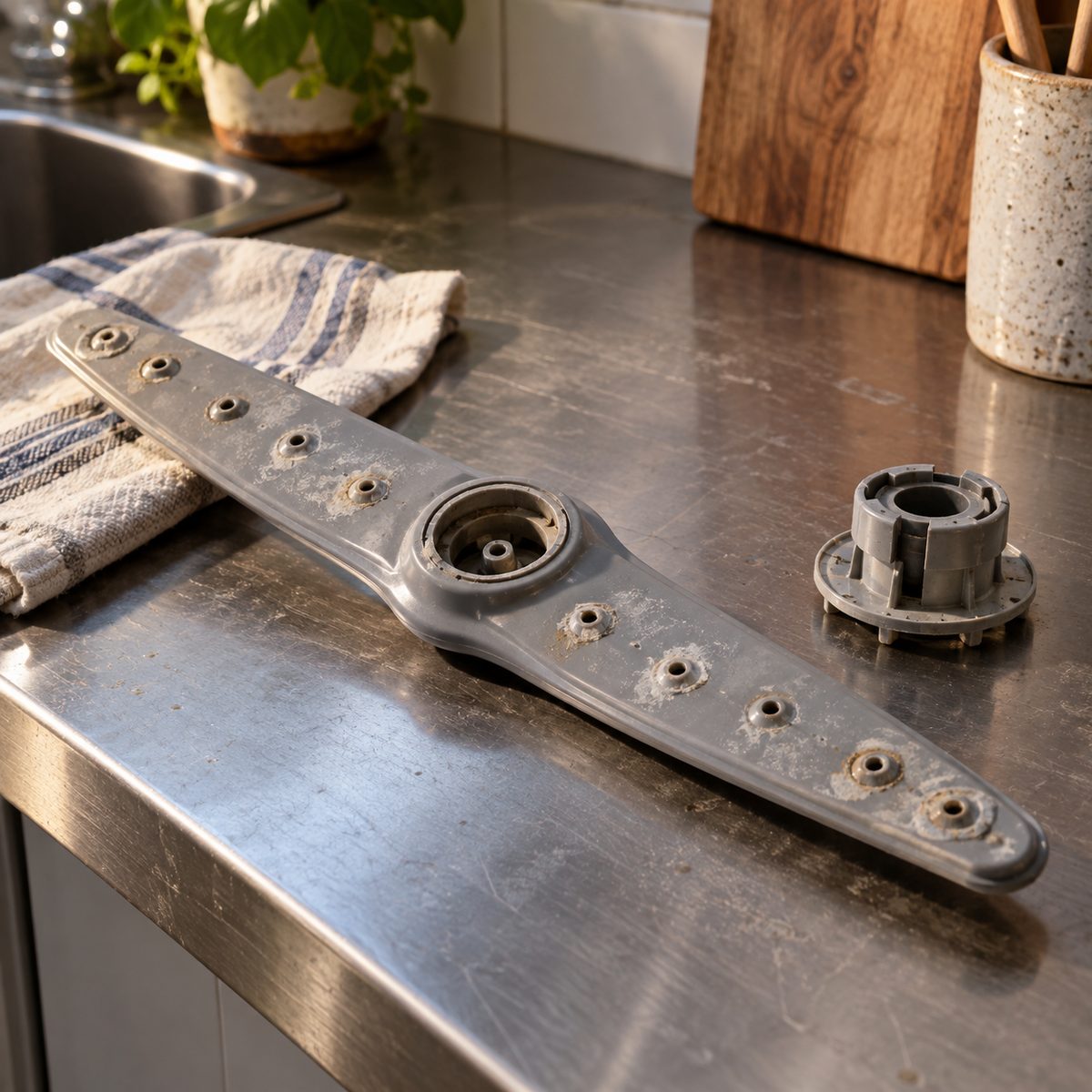

Dishwasher lower spray arm
The lower spray arm is a molded polypropylene bar that spins on a hub bearing in the sump, driven only by the water leaving its nozzles. Two things kill it. Austin water is hard, so scale closes the nozzles and the arm stops turning. Or the hub bearing wears oval, the arm wobbles, catches a plate and cracks along the seam.
Try a toothpick and a vinegar soak on the nozzles first. It costs nothing and it fixes about half the arms people bring in. When the arm is cracked or the hub is worn, we check the hub bearing diameter against the old arm and the mounting style: screw-on cap, bayonet twist, or a press-fit seal ring. The same model number has carried two hub styles across production years, so the serial matters here too.
| Matched by | Model and serial, then hub measured on the old arm |
|---|---|
| Checked | Hub bearing diameter, mount style, arm length against the rack |
| Included | Seal ring or bearing where the OEM part ships with one |
| Price basis | Per arm · $22–$58 |
$22–$58Indicative, confirmed on reply
+Also on the counter
Inlet valves and rack rollers.
Water inlet valves. A solenoid valve behind the kick plate. When it fails the tub fills slowly, overfills, or hums with no water at all. Matched on coil voltage, inlet thread (usually 3/4 GHT on the supply side) and outlet barb size. Indicative $24–$55.
Rack rollers and axles. Sold singly, from about $3 a roller, because one cracked roller doesn't need a bag of eight. Bring one off the rack; diameter and the clip style are all we need.
Supply lines for the dishwasher sit with hoses, lines and O-rings.
→From message to counter
- Send the tub-edge tagOpen the door; the plate is on the left or right edge of the tub. Photo, or type it out with the serial.
- We check profile or hubFor a gasket, the parts list gives us the profile and we confirm on the old piece if you have it. For an arm, the hub style for your serial range.
- Confirmed price and ready dateA number, OEM or compatible, and when it can be on the counter.
- Pickup or shippedGaskets and arms ship fine. We include a note on fitting.
Before you order dishwasher parts.
Is a compatible gasket worth it?
Often, yes, when the profile matches. Where a compatible version runs a thinner lip than the OEM part, we tell you and quote both. The difference is usually $8 to $15.
My dishwasher won't drain. Is that a part you sell?
Usually the fix is a clogged filter or a kinked drain hose, not a part. Check those first. If the drain pump itself is dead, send the model and serial and we'll match it the same way we do for washers.
Who is this not for?
Anyone who wants the dishwasher repaired for them. We don't send technicians. And if the control board has failed on a machine past ten years, we'll usually tell you the board costs more than the machine is worth.
